采用5.7英寸（120×90）PLC多彩液晶顯示屏，中文菜單操作。公稱規格、測試項目、應加載荷、打印、測試、上行、下行、時間、標定。由鍵盤控制液晶顯示屏上的菜單，機載打印測試數據。 YFZ02-D醫用針針尖強度、刺穿力測試儀完全符合 “YY0043-2016”《醫用縫合針》的標準設計制造。

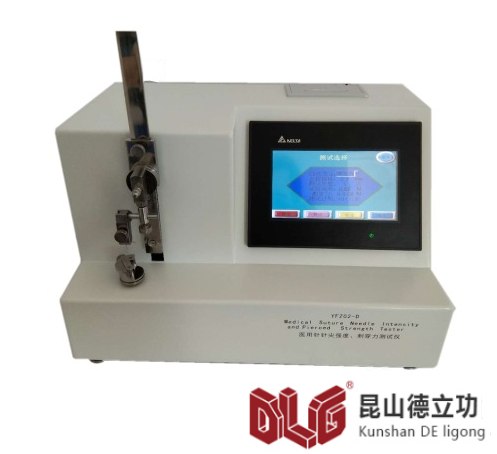

Using 5.7 inch (120 *90) PLC multi-color LCD display, Chinese menu operation. Nominal specifications, test items, payload, printing, testing, upstream, downstream, time and calibration. The menu on LCD screen is controlled by keyboard, and the test data is printed on board. YFZ02-D Medical Needle Tip Strength and Puncture Force Tester fully conforms to the standard design and manufacture of "YY0043-2016" Medical Suture Needle.

測試項目：強度、刺穿力；

公稱規格：0.2～1.8mm;

設定荷載：0.2～2.0N，

精    度：±1%；

加載速率：加載到設定值時其速度≤10mm/s

鋼塊硬度HRC≧60

打印方式：每次可打印3次刺穿力測試數據及平均值和強度測試結果。

凈重：11kg      外形尺寸：400×290×260（mm）

部分清單：

1.主機一臺  2.打印紙1卷3.夾具一套4.砝碼一套5.質保一年

6.操作說明7.儀器終身免費依國家標準規定升級服務

Test items: strength, penetration force;

Nominal specification: 0.2-1.8mm;

Setting load: 0.2-2.0N,

Accuracy: +1%;

Loading Rate: When loaded to a set value, its speed is less than 10 mm/s

Hardness of steel block HRC (> 60)

Printing method: 3 times of test data of penetration force, average value and strength test results can be printed each time.

Net weight: 11kg shape size: 400 x 290 x 260 (mm)

Part of the list:

1. A mainframe 2. Printing paper 1 roll 3. Fixture set 4. Weight set 5. Quality guarantee for one year

6. Operational instructions 7. Free upgrade service of instrument in accordance with national standards for life
