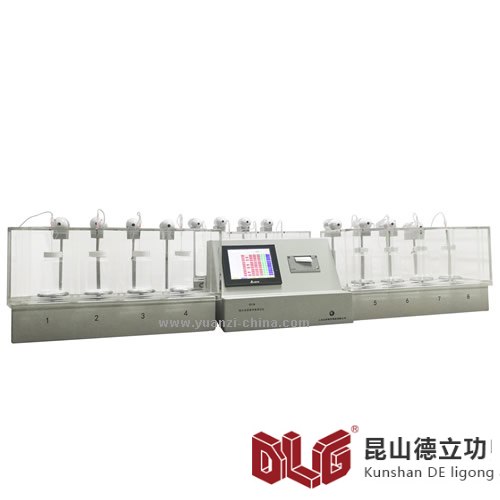

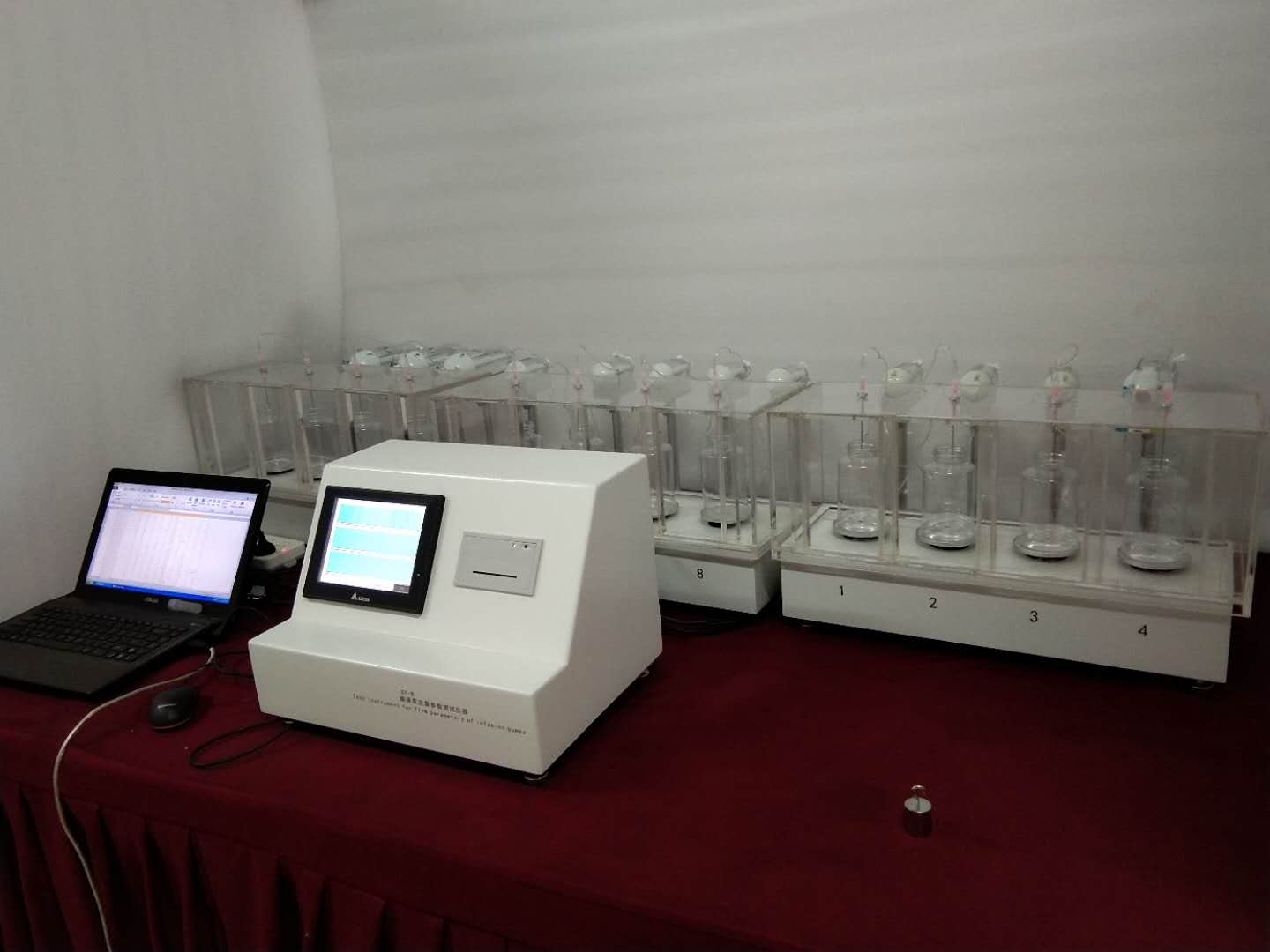

輸注泵流量測試儀SY-B
產品名稱：輸注泵流量測試儀
產品型號：SY-B
產品品牌：
適用方向：用于輸注泵流量測試儀，此產品可做一拖四，一拖八，一拖十二，三種同時測試不同數量的方法，詳細來電咨詢
是根據YY 0451-2003 一次性使用輸注泵和YY 0451-2010 一次性使用便攜式輸注泵中的有關條款而設計制造的。（一拖8個輸注泵檢測或根據客戶需要增加或減少）用于分別測量輸注泵平均流量、瞬時流量，并顯示輸注泵流量與時間的曲線圖。
采用PLC可編程控制器、液晶觸控屏、全中文菜單，由觸控屏選擇測試參數，自動測試，自動判斷結果。
It is designed and manufactured according to the relevant provisions of YY 0451-2003 disposable infusion pump and YY 0451-2010 disposable portable infusion pump. (Dragging 8 infusion pumps to detect or increase or decrease according to customer's needs) Used to measure the average flow and instantaneous flow of infusion pump respectively, and display the flow and time curve of infusion pump.
Using PLC programmable controller, LCD touch screen and full Chinese menu, the test parameters are selected by touch screen, and the test results are automatically judged.
測試范圍：0~600g 分辨率0.01g，誤差不大于讀數±1%。
打印：可打印100個點的數據
曲線圖：8組曲線圖可切換查看
時間設定：1~10000min 自動計算出平均流量、瞬間流量。
凈重：15kg
外形尺寸：500×360×240（mm）
部分清單：
1.主機一臺
2.打印紙1卷
3.質保一年
4.操作說明
5.儀器終身免費依國家標準規定升級服務
Test range: 0-600 g resolution is 0.01 g, error is not more than 1% reading.
Printing: Data that can print 100 points
Curves: 8 groups of graphs can be switched to view
Time setting: 1 ~ 10000 minutes automatically calculate the average flow and instantaneous flow.
Net weight: 15kg
Shape size: 500 x 360 x 240 (mm)
Part of the list:
1. One mainframe
2. Print Paper 1 Volume
3. One-year warranty
4. Operational instructions
5. Instrument upgrade service free of charge for life in accordance with national standards
